Magicyura Infrared Panel Heaters

Northern Lights Cedar Saunas has partnered with Korean based Magicyura to provide one of the worlds finest Infrared heaters. Magicyura's patented carbon-ceramic paper provides a higher temperature and superior radiant effeciency versus any other panel infrared heater on the market. The large surface areas make these heaters ideal for sauna applications as they cover much more body surface area than any other style ceramic tube or incoloy element on the market.

The surface temperature of 180-190 degrees provides ideal wave lengths between 4 and 14 microns. This frequency is considered to be the most effective wave spectrum for the human body.

Other Infrared elements, reach temperatures as high as 500 degrees, the problem with this is that the higher the temperature the higher the frequency. Because of this other style tube or convex heaters produces Infrared but not at the optimum spectrum. This physical phenomena is know as Wiens law that states ' The wave length is inversely proportionate to the temperature" click here for more info

What is Magicyura?

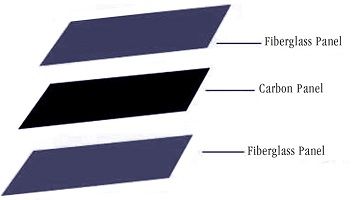

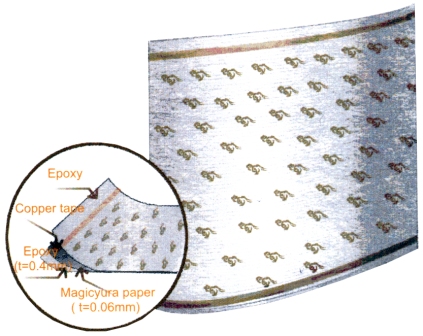

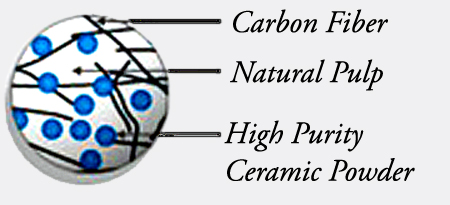

Magicyura is a micro thin paper material that is made up of carbon fibers and ceramic molecules, unlike other carbon heaters the combination of both ceramic and carbon fibers produces more Infrared Wave lengths. The Magicyura paper is then sandwiched between and epoxy fiber coating for protection. These heaters are so durable that we provide a life time warranty!

Advantages!

Easy to install- Because the Magicyura panel is so thin (.8 mm), it is very simple to retrofit an existing room into a sauna cabin. The heater are hung just like a picture frames, two wires supplied (40") are attached to a control box and that is it!

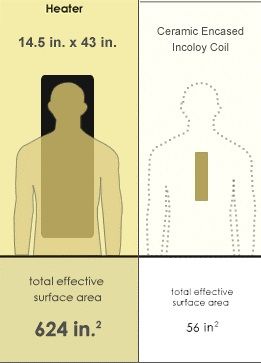

More surface- Because of the larger size, the whole human body can be immersed in Infrared rays. Other heaters are very specific and only provide direct heat to the part of the body in front of it. Most companies add reflection housings but the fact is Infrared light is very hard to redirect and very little is actually dispersed outside of the direct path.

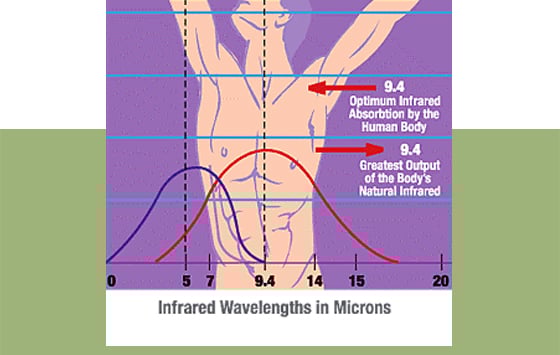

9.4 Microns! - The carbon -ceramic powered heaters release the most ideal Infrared wave lengths between averaging 4-14 microns. At this spectrum, our bodies absorb up to 93% of the infrared heat because the energy output so closely resembles our own bodies radiant energy. Other heaters emit infrared wavelengths but they are outside the ideal 9.4 spectrum.

Won't burn- Unlike other infrared heaters, the max surface temperature is under 190 F^o, while hot, this will not burn skin. Each Magicyura heater also comes with a safety hi-limit switch on the back.

Lifetime Warrant- unlike other heaters that burn out, Magicyura heaters come with a lifetime warranty against manufactures defects

UL CSA & CE approval- an estimated 80 percent of the infrared heaters sold in North America do not have the proper certifications and can be both a hazard and a liability for the home owners.

Down Load Infrared Heater comparrison Study!

Calculating the Required Number of Heaters

Room volume = L x W x H

Rule: For ever 15 ft³ add one 150Watt heater. The placement of the heatrer should be infront and behind the body.

COMMANDER Digital Controller

This is the ideal sauna controller for infrared, or regular heaters. It comes with advance features such as LED control, electronic timer, lighting control, and fan control. Can be placed up to 100 ft away.

Product Name	Product Description	Price
Commander Infrared Digital controller	Commander control center for Infrared systems or Convection Heaters. Includes fan option and light option, wiht very accurate LED temperature control and timer.	$389.00CAD
150 Watts- Magicyura Panel Infrared Heater	Patented carbon-ceramic Magicyura heater with wooden frame. Measures 25 3/4" x 12"	$220.00CAD
300 Watts- Magicyura Panel Infrared Heater	Patented carbon-ceramic Magicyura heater with wooden frame. Measures 25 3/4" x 22"	$396.00CAD
500 Watts- Magicyura Panel Infrared Heater	Patented carbon-ceramic Magicyura heater with wooden frame. Measures 41 1/2" x 25 3/4"	$599.00CAD
