Electric Sauna Heater - Room Sizing
Step #1 ......calculate your room volume
The sauna heater, being the heart of the sauna, must be the correct wattage to be efficient and to meet electrical codes. To determine the heater you require, calculate the room size and use the chart below for reference.
example: a sauna room measuring 5 ft X 6 ft X 7 ft high, equals 210 cubic feet.
This room will require a model CHSH 5 heater with a model TK control as shown in the charts below.
Step #2 .....pick the matching heater and control
| Heater model |
Minimum ceiling height |
Cubic Room size |
Watts |
Volts |
Phase
|
Circuit Breaker |
Wire Size-90 degree copper
|
Required Heater Control |
| CHSH 4 |
78 inches |
100-150 ft |
4,000 |
240 |
1
|
30 |
10
|
TKE |
| CHSH 5 |
78 inches |
150-250 ft |
5,000 |
240 |
1
|
30 |
10
|
TKE |
| HSH 6 |
78 inches |
250-300 ft |
6,000 |
240 |
1
|
40 |
8
|
TKE |
| HSH 7.5 |
78inches |
300-370 ft |
7,500 |
240 |
1
|
40 |
8
|
TKE1 |
| HSH 9.0 |
78inches |
360-450 ft |
9,000 |
240 |
1 |
50 |
8 |
TKE2 |
|

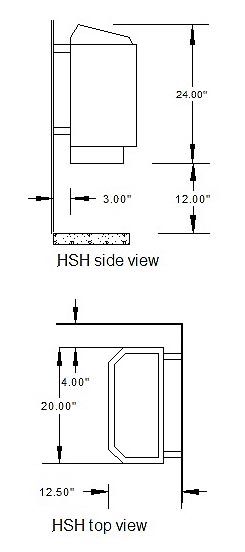

HSH- Wall Mount
|
|

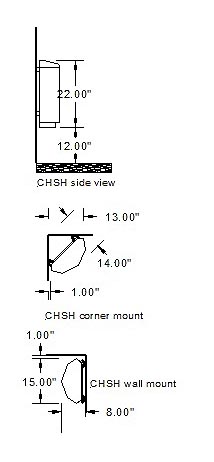

CHSH -Corner Mount
|
 |
|
 |
